class for BEM HCA generator functions with invariant basis functions More...

#include <TQuadHCAGenFn.hh>

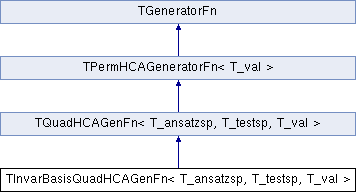

Inheritance diagram for TInvarBasisQuadHCAGenFn< T_ansatzsp, T_testsp, T_val >:

Public Member Functions
	TInvarBasisQuadHCAGenFn (const ansatzsp_t ansatzsp, const testsp_t testsp, const uint quad_order, const TPermutation row_perm_i2e, const TPermutation col_perm_i2e, stat_t *stat=NULL)

virtual void	integrate_dx_perm (const std::vector< idx_t > &idxs, const std::vector< T3Point > &pts, BLAS::Matrix< value_t > &matrix) const

virtual void	integrate_dy_perm (const std::vector< idx_t > &idxs, const std::vector< T3Point > &pts, BLAS::Matrix< value_t > &matrix) const

Public Member Functions inherited from TQuadHCAGenFn< T_ansatzsp, T_testsp, T_val >
	TQuadHCAGenFn (const ansatzsp_t ansatzsp, const testsp_t testsp, const uint quad_order, const TPermutation row_perm_i2e, const TPermutation col_perm_i2e, stat_t *stat=NULL)

Public Member Functions inherited from TPermHCAGeneratorFn< T_val >
	TPermHCAGeneratorFn (const TPermutation row_perm_i2e, const TPermutation col_perm_i2e)

virtual void	integrate_dx (const TIndexSet &is, const std::vector< T3Point > &pts, BLAS::Matrix< value_t > &matrix) const

virtual void	integrate_dy (const TIndexSet &is, const std::vector< T3Point > &pts, BLAS::Matrix< value_t > &matrix) const

Public Member Functions inherited from THCA< T >::TGeneratorFn
virtual bool	is_complex () const
	indicate complex nature of function

virtual value_t	eval (const T3Point &x, const T3Point &y) const =0

virtual void	integrate_dx (const TIndexSet &is, const std::vector< T3Point > &pts, BLAS::Matrix< value_t > &matrix) const =0

virtual void	integrate_dy (const TIndexSet &is, const std::vector< T3Point > &pts, BLAS::Matrix< value_t > &matrix) const =0

Protected Member Functions
const std::vector< ansatz_value_t > *	ansatz_val (const idx_t idx, const TGrid::triangle_t &tri, const uint order) const

const std::vector< test_value_t > *	test_val (const idx_t idx, const TGrid::triangle_t &tri, const uint order) const
	same as More...

Protected Member Functions inherited from TQuadHCAGenFn< T_ansatzsp, T_testsp, T_val >
virtual void	eval_dx (const idx_t tri_idx, const T3Point &y, const tri_quad_rule_t &quad_rule, std::vector< value_t > &values) const =0

virtual void	eval_dy (const T3Point &x, const idx_t tri_idx, const tri_quad_rule_t &quad_rule, std::vector< value_t > &values) const =0

Detailed Description

template<typename T_ansatzsp, typename T_testsp, typename T_val>
class HLIB::TInvarBasisQuadHCAGenFn< T_ansatzsp, T_testsp, T_val >

Optimises evaluation of basis function for quadrature points under the assumption, that they are invariant with respect to translation and scaling, e.g. can be precomputed on reference triangles.

Constructor & Destructor Documentation

TInvarBasisQuadHCAGenFn	(	const ansatzsp_t *	ansatzsp,
		const testsp_t *	testsp,
		const uint	quad_order,
		const TPermutation *	row_perm_i2e,
		const TPermutation *	col_perm_i2e,
		stat_t *	stat = `NULL`
	)

constructor for HCA generator function over ansatz space ansatzsp test space testsp with permutations for row and column indices and (maximal) quadrature order quad_order

Member Function Documentation

const std::vector< ansatz_value_t >* ansatz_val	(	const idx_t	idx,
		const TGrid::triangle_t &	tri,
		const uint	order
	)		const

inlineprotected

return ansatz basis function values for index idx in triangle tri for quadrature points of order order

virtual void integrate_dx_perm	(	const std::vector< idx_t > &	idxs,
		const std::vector< T3Point > &	pts,
		BLAS::Matrix< value_t > &	matrix
	)		const

virtual

Evaluate $\int \phi_i(x) D_x \gamma(x, y_{l}) dx$ for i ∈ is and points $y_{l}$ defined by pts. Store results in matrix at index (i,l).

Reimplemented from TQuadHCAGenFn< T_ansatzsp, T_testsp, T_val >.

virtual void integrate_dy_perm	(	const std::vector< idx_t > &	idxs,
		const std::vector< T3Point > &	pts,
		BLAS::Matrix< value_t > &	matrix
	)		const

virtual

Evaluate $\int \phi_j(y) D_y \gamma(x_{l}, y) dy$ for j ∈ is and points $x_{l}$ defined by pts. Store results in matrix at index (j,l).

Reimplemented from TQuadHCAGenFn< T_ansatzsp, T_testsp, T_val >.

const std::vector< test_value_t >* test_val	(	const idx_t	idx,
		const TGrid::triangle_t &	tri,
		const uint	order
	)		const

inlineprotected

See also: ansatz_val but for test space
