TInvarBasisQuadBEMBF< T_ansatzsp, T_testsp, T_val > Class Template Reference

Class for quadrature based bilinear forms with invariant basis functions. More...

#include <TQuadBEMBF.hh>

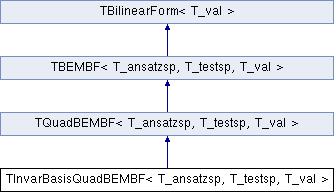

Inheritance diagram for TInvarBasisQuadBEMBF< T_ansatzsp, T_testsp, T_val >:

Public Member Functions
	TInvarBasisQuadBEMBF (const ansatzsp_t *ansatzsp, const testsp_t *testsp, const uint order, const bool dist_ada=false)
virtual	~TInvarBasisQuadBEMBF ()
	destructor
virtual void	eval (const std::vector< idx_t > &row_ind, const std::vector< idx_t > &col_ind, BLAS::Matrix< value_t > &values) const
Public Member Functions inherited from TQuadBEMBF< T_ansatzsp, T_testsp, T_val >
	TQuadBEMBF (const ansatzsp_t *ansatzsp, const testsp_t *testsp, const uint order, const bool dist_ada=false)
virtual	~TQuadBEMBF ()
	destructor
Public Member Functions inherited from TBEMBF< T_ansatzsp, T_testsp, T_val >
	TBEMBF (const ansatzsp_t *aansatzsp, const testsp_t *atestsp)
	construct bilinear form over function spaces ansatzsp and testsp
virtual	~TBEMBF ()
	destructor
const ansatzsp_t *	ansatz_space () const
	return ansatz space
const testsp_t *	test_space () const
	return test space
Public Member Functions inherited from TBilinearForm< T_val >
bool	is_complex () const
	return true if bilinear form is complex valued
virtual matform_t	format () const
	return format of bilinear form, e.g. symmetric

Protected Member Functions
void	compute_basis_func ()
	compute ansatz and test basis functions for all quadrature points
const std::vector< ansatz_value_t > *	ansatz_val (const idx_t idx, const TGrid::triangle_t &tri, const uint ncommon, const uint order) const
const std::vector< test_value_t > *	test_val (const idx_t idx, const TGrid::triangle_t &tri, const uint ncommon, const uint order) const
	same as More...
Protected Member Functions inherited from TQuadBEMBF< T_ansatzsp, T_testsp, T_val >
uint	reorder_common (idx_t *vtx0idxs, idx_t *vtx1idxs) const
uint	adjust_order (const idx_t *vtx0idxs, const idx_t *vtx1idxs, const uint order) const
	adjust quadrature order order depending on diameter and distance of triangles
const tripair_quad_rule_t *	quad_rule (const uint ncommon, const uint order) const
	return quadrature rule for ncommon vertices and order order
virtual void	eval_kernel (const idx_t tri0idx, const idx_t tri1idx, const TGrid::triangle_t &tri0, const TGrid::triangle_t &tri1, const tripair_quad_rule_t *quad_rule, std::vector< value_t > &values) const =0

Additional Inherited Members
Protected Attributes inherited from TBEMBF< T_ansatzsp, T_testsp, T_val >
const ansatzsp_t *	_ansatz_sp
	function space for ansatz functions
const testsp_t *	_test_sp
	function space for test functions

Detailed Description

template<typename T_ansatzsp, typename T_testsp, typename T_val>
class HLIB::TInvarBasisQuadBEMBF< T_ansatzsp, T_testsp, T_val >

TConstBasusQuadBEMBF extends TQuadBEMBF for function spaces with invariant basis functions, e.g. with respect to translation, scaling and rotation. This allows their precomputation for the unit triangle, improving efficiency.

Constructor & Destructor Documentation

TInvarBasisQuadBEMBF	(	const ansatzsp_t *	ansatzsp,
		const testsp_t *	testsp,
		const uint	order,
		const bool	dist_ada = false
	)

construct bilinear form over function spaces ansatzsp and testsp using quadratur with order order; if dist_ada is true, the quadrature order is adaptively adjusted according to distance

Member Function Documentation

const std::vector< ansatz_value_t >* ansatz_val ( const idx_t  idx, const TGrid::triangle_t &  tri, const uint  ncommon, const uint  order  ) const

inlineprotected

return ansatz basis function values for index idx in triangle tri for quadrature points with ncommon common vertices and order order

virtual void eval ( const std::vector< idx_t > &  row_ind, const std::vector< idx_t > &  col_ind, BLAS::Matrix< value_t > &  values  ) const

virtual

evaluate subblock defined by row_ind × col_ind; the indices in row_ind and col_ind can be arbitrary, e.g. must not be contiguous

Reimplemented from TQuadBEMBF< T_ansatzsp, T_testsp, T_val >.

const std::vector< test_value_t >* test_val ( const idx_t  idx, const TGrid::triangle_t &  tri, const uint  ncommon, const uint  order  ) const

inlineprotected

See also

ansatz_val but for test space
