TGridVis Class Referenceabstract
Input/Output

Base class for grid visualisation.

#include <TGridVis.hh>

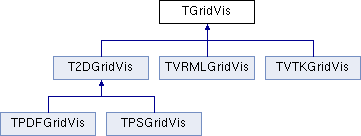

Inheritance diagram for TGridVis:
T2DGridVis TVRMLGridVis TVTKGridVis TPDFGridVis TPSGridVis

Public Member Functions

virtual void print (const TGrid *grid, const std::string &filename) const =0
 print grid to file filename

virtual void print (const TGrid *grid, const TFnSpace *fnspace, const TVector *vec, const std::string &filename) const =0

void set_func_value_interval (const double minval, const double maxval)

double min_func_value () const
 access function value interval

void set_colourmap (const std::string &cmap)
 set colour map

std::string colourmap () const
 return name of colourmap


Member Function Documentation

◆ print()

virtual void print ( const TGrid *  grid,
const TFnSpace *  fnspace,
const TVector *  vec,
const std::string &  filename
) const
pure virtual

print grid to file filename with colours according to values in vector vec which holds coefficients for function in fnspace

Implemented in TVTKGridVis, TVRMLGridVis, and T2DGridVis.

◆ set_func_value_interval()

void set_func_value_interval ( const double  minval,
const double  maxval
)

set value interval for grid function visualisation

  • colour is chosen based function value and position in interval
  • if actual function value is out of interval, value is clipped
