base class for HCA generator functions using row/column permutations More...

#include <TLowRankApx.hh>

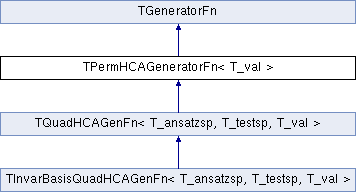

Inheritance diagram for TPermHCAGeneratorFn< T_val >:

Public Member Functions
	TPermHCAGeneratorFn (const TPermutation row_perm_i2e, const TPermutation col_perm_i2e)

virtual void	integrate_dx (const TIndexSet &is, const std::vector< T3Point > &pts, BLAS::Matrix< value_t > &matrix) const

virtual void	integrate_dy (const TIndexSet &is, const std::vector< T3Point > &pts, BLAS::Matrix< value_t > &matrix) const

virtual void	integrate_dx_perm (const std::vector< idx_t > &idxs, const std::vector< T3Point > &pts, BLAS::Matrix< value_t > &matrix) const =0

virtual void	integrate_dy_perm (const std::vector< idx_t > &idxs, const std::vector< T3Point > &pts, BLAS::Matrix< value_t > &matrix) const =0

Public Member Functions inherited from THCA< T >::TGeneratorFn
virtual bool	is_complex () const
	indicate complex nature of function

virtual value_t	eval (const T3Point &x, const T3Point &y) const =0

virtual void	integrate_dx (const TIndexSet &is, const std::vector< T3Point > &pts, BLAS::Matrix< value_t > &matrix) const =0

virtual void	integrate_dy (const TIndexSet &is, const std::vector< T3Point > &pts, BLAS::Matrix< value_t > &matrix) const =0

Detailed Description

Provides basic permutation management for evaluating the integrals over the derivatives of the kernel generator function.

Constructor & Destructor Documentation

inline

constructor

inlinevirtual

Evaluate $\int \phi_i(x) D_x \gamma(x, y_{l}) dx$ for i ∈ is and points $y_{l}$ defined by pts. Store results in matrix at index (i,l).

virtual void integrate_dx_perm	(	const std::vector< idx_t > &	idxs,
		const std::vector< T3Point > &	pts,
		BLAS::Matrix< value_t > &	matrix
	)		const

pure virtual

Evaluate $\int \phi_i(x) D_x \gamma(x, y_{l}) dx$ for i ∈ is and points $y_{l}$ defined by pts. Indices in idxs are given in external order.

inlinevirtual

Evaluate $\int \phi_j(y) D_y \gamma(x_{l}, y) dy$ for j ∈ is and points $x_{l}$ defined by pts. Store results in matrix at index (j,l).

virtual void integrate_dy_perm	(	const std::vector< idx_t > &	idxs,
		const std::vector< T3Point > &	pts,
		BLAS::Matrix< value_t > &	matrix
	)		const

pure virtual

Evaluate $\int \phi_j(y) D_y \gamma(x_{l}, y) dy$ for j ∈ is and points $x_{l}$ defined by pts. Indices in idxs are given in external order.
