Bilinear form for Laplace double layer potential. More...
#include <TLaplaceBF.hh>

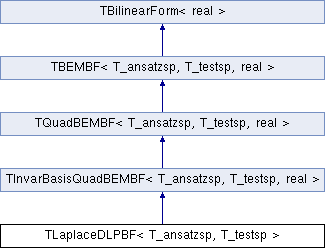

Inheritance diagram for TLaplaceDLPBF< T_ansatzsp, T_testsp >:
Public Member Functions | |
| matform_t | format () const |
| return format of bilinear form, e.g. symmetric | |
 Public Member Functions inherited from TInvarBasisQuadBEMBF< T_ansatzsp, T_testsp, real > | |
| TInvarBasisQuadBEMBF (const ansatzsp_t *ansatzsp, const testsp_t *testsp, const uint order, const bool dist_ada=false) | |
| virtual | ~TInvarBasisQuadBEMBF () |
| destructor | |
| virtual void | eval (const std::vector< idx_t > &row_ind, const std::vector< idx_t > &col_ind, BLAS::Matrix< value_t > &values) const |
| Public Member Functions inherited from TQuadBEMBF< T_ansatzsp, T_testsp, real > | |
| TQuadBEMBF (const ansatzsp_t *ansatzsp, const testsp_t *testsp, const uint order, const bool dist_ada=false) | |
| virtual | ~TQuadBEMBF () |
| destructor | |
| Public Member Functions inherited from TBEMBF< T_ansatzsp, T_testsp, real > | |
| TBEMBF (const ansatzsp_t *aansatzsp, const testsp_t *atestsp) | |
| construct bilinear form over function spaces ansatzsp and testsp | |
| virtual | ~TBEMBF () |
| destructor | |
| const ansatzsp_t * | ansatz_space () const |
| return ansatz space | |
| const testsp_t * | test_space () const |
| return test space | |
| Public Member Functions inherited from TBilinearForm< real > | |
| bool | is_complex () const |
| return true if bilinear form is complex valued | |
Protected Member Functions | |
| virtual void | eval_kernel (const idx_t tri0idx, const idx_t tri1idx, const TGrid::triangle_t &tri0, const TGrid::triangle_t &tri1, const tripair_quad_rule_t *quad_rule, std::vector< real > &values) const |
| Protected Member Functions inherited from TInvarBasisQuadBEMBF< T_ansatzsp, T_testsp, real > | |
| void | compute_basis_func () |
| compute ansatz and test basis functions for all quadrature points | |
| const std::vector < ansatz_value_t > * | ansatz_val (const idx_t idx, const TGrid::triangle_t &tri, const uint ncommon, const uint order) const |
| const std::vector< test_value_t > * | test_val (const idx_t idx, const TGrid::triangle_t &tri, const uint ncommon, const uint order) const |
| same as More... | |
| Protected Member Functions inherited from TQuadBEMBF< T_ansatzsp, T_testsp, real > | |
| uint | reorder_common (idx_t *vtx0idxs, idx_t *vtx1idxs) const |
| uint | adjust_order (const idx_t *vtx0idxs, const idx_t *vtx1idxs, const uint order) const |
| adjust quadrature order order depending on diameter and distance of triangles | |
| const tripair_quad_rule_t * | quad_rule (const uint ncommon, const uint order) const |
| return quadrature rule for ncommon vertices and order order | |
Additional Inherited Members | |
| Protected Attributes inherited from TBEMBF< T_ansatzsp, T_testsp, real > | |
| const ansatzsp_t * | _ansatz_sp |
| function space for ansatz functions | |
| const testsp_t * | _test_sp |
| function space for test functions | |
Detailed Description
template<typename T_ansatzsp, typename T_testsp>
class HLIB::TLaplaceDLPBF< T_ansatzsp, T_testsp >
TLaplaceDLPBF implements the bilinear form for the Laplace double layer potential with the kernel function
![\[ \frac{\langle n, y-x \rangle}{\|x-y\|_2^3} \]](form_42.png)
.
Member Function Documentation
|
protectedvirtual |
compute kernel at quadrature points in triangles tri0idx and tri1idx with coordinate indices tri0 and tri1 using quadrature rule quad_rule; the results for all points are returned in values
Implements TQuadBEMBF< T_ansatzsp, T_testsp, real >.
