Base class for all matrices, defining basic properties, e.g. underlying block index and processor set.

#include <TMatrix.hh>

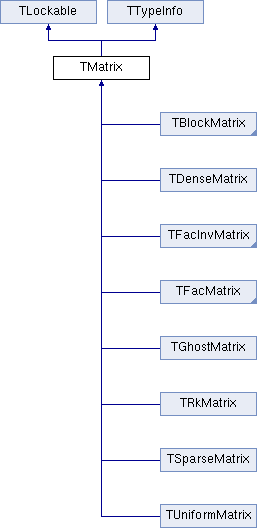

Inheritance diagram for TMatrix:

Public Member Functions
	TMatrix (const bool acomplex=false)
	construct zero sized matrix
	TMatrix (const TBlockCluster *c)
	construct matrix of size defined by block cluster c
	TMatrix (const TBlockIndexSet &bis)
	construct matrix of size defined by block cluster c
	TMatrix (const TMatrix &A)
	copy constructor
virtual	~TMatrix ()
	dtor
virtual size_t	rows () const =0
	return number of rows
virtual size_t	cols () const =0
	return number of columns
TIndexSet	row_is () const
	return row index set
TIndexSet	col_is () const
	return column index set
TBlockIndexSet	block_is () const
	return block index set
virtual idx_t	row_ofs () const
	return first index (number) in row
virtual idx_t	col_ofs () const
	return first index (number) in column
virtual void	set_size (const size_t n, const size_t m)=0
	set size of matrix
virtual void	set_ofs (const idx_t r, const idx_t c)
	set index set offsets
virtual void	set_block_is (const TBlockIndexSet &is)
	set block index set of matrix
bool	is_nonsym () const
	return true if matrix is unsymmetric
bool	is_symmetric () const
	return true if matrix is symmetric
bool	is_hermitian () const
	return true if matrix is hermitian
matform_t	form () const
	return matrix format
void	set_nonsym ()
	set matrix to be unsymmetric
void	set_symmetric ()
	set matrix to be symmetric
void	set_hermitian ()
	set matrix to be hermitian
virtual void	set_form (const matform_t f)
	set matrix format
const TProcSet &	procs () const
	return matrix processor set
uint	nprocs () const
	return number of processors in local set
void	set_procs (const TProcSet &ps)
	set processor set of matrix
virtual void	copy_struct (const TMatrix *M)
bool	is_real () const
	return true if matrix is real valued
bool	is_complex () const
	return true if matrix is complex valued
void	set_complex (const bool b, const bool force=false)
virtual void	to_real ()=0
	change data representation to real valued (if possible)
virtual void	to_complex ()=0
	change data representation to complex valued
virtual real	entry (const idx_t i, const idx_t j) const
virtual const complex	centry (const idx_t i, const idx_t j) const
const TBlockCluster *	cluster () const
	return corresponding block cluster of matrix
virtual void	set_cluster (const TBlockCluster *c)
	set block cluster of matrix
virtual void	transpose ()
	transpose matrix
virtual void	conjugate ()
	conjugate matrix coefficients
virtual void	truncate (const TTruncAcc &acc)=0
	truncate matrix to accuracy acc
virtual void	scale (const real alpha)
	compute this ≔ α·this
virtual void	add (const real alpha, const TMatrix *matrix)
	compute this ≔ this + α · matrix
virtual void	mul_vec (const real alpha, const TVector x, const real beta, TVector y, const matop_t op=MATOP_NORM) const
	compute y ≔ β·y + α·op(M)·x, with M = this
virtual TMatrix *	mul_right (const real alpha, const TMatrix *B, const matop_t op_A, const matop_t op_B) const
	compute α·op(A)·op(B), with A = this
virtual TMatrix *	mul_left (const real alpha, const TMatrix *A, const matop_t op_A, const matop_t op_B) const
	compute α·op(A)·op(B), with B = this
virtual void	cscale (const complex alpha)
	compute this ≔ α·this
virtual void	cadd (const complex alpha, const TMatrix *matrix)
	compute this ≔ this + α · matrix
virtual void	cmul_vec (const complex alpha, const TVector x, const complex beta, TVector y, const matop_t op=MATOP_NORM) const
	compute y ≔ β·y + α·op(M)·x, with M = this
virtual TMatrix *	cmul_right (const complex alpha, const TMatrix *B, const matop_t op_A, const matop_t op_B) const
	compute α·op(A)·op(B), with A = this
virtual TMatrix *	cmul_left (const complex alpha, const TMatrix *A, const matop_t op_A, const matop_t op_B) const
	compute α·op(A)·op(B), with B = this
virtual size_t	byte_size () const
	return size in bytes used by this object
virtual size_t	global_byte_size () const
virtual typeid_t	type () const
	return type ID of matrix
virtual TMatrix *	create () const =0
	return matrix of same class (but no content)
virtual TMatrix *	copy () const
	return copy of matrix
virtual TMatrix *	copy (const TTruncAcc &acc, const bool coarsen=false) const
	return copy of matrix with accuracy acc and optional coarsening
virtual void	copy_to (TMatrix *A) const
	copy matrix into matrix A
virtual void	copy_to (TMatrix *A, const TTruncAcc &acc, const bool coarsen=false) const
	copy matrix into matrix A with accuracy acc and optional coarsening
virtual TVector *	row_vector () const
	return appropriate row vector object for matrix
virtual TVector *	col_vector () const
	return appropriate column vector object for matrix
virtual void	read (TByteStream &s)
	read data from stream s and copy to matrix
virtual void	build (TByteStream &s)
	use data from stream s to build matrix
virtual void	write (TByteStream &s) const
	write data to stream s
virtual size_t	bs_size () const
	returns size of object in bytestream
virtual void	sum (const TProcSet &p, const uint pid, const uint nparts, TByteStream *bs, const TTruncAcc &acc)
virtual void	check_data () const
	test data for invalid values, e.g. INF and NAN
virtual void	print (const uint ofs=0) const
	print basic info about matrix to stdout
Public Member Functions inherited from TLockable
TMutex &	mutex ()
	give access to internal mutex
void	lock ()
	lock local mutex of matrix
void	unlock ()
	unlock local mutex of matrix
Public Member Functions inherited from TTypeInfo
virtual bool	is_type (const typeid_t t) const
	return true if local object is of given type ID t
virtual String	typestr () const
	return string representation of type

Member Function Documentation

virtual const complex centry	(	const idx_t	i,
		const idx_t	j
	)		const

virtual

return index (i,j) of the matrix (complex valued)

i and j are global indices, e.g. not w.r.t. local index set

Reimplemented in TDenseMatrix, TRkMatrix, TUniformMatrix, TFacMatrix, TSparseMatrix, TFacInvMatrix, TBlockMatrix, TH2Matrix, and THMatrix.

virtual void copy_struct ( const TMatrix * M )

inlinevirtual

copy complete structural information from given matrix, e.g. size, offsets and field type

Reimplemented in TBlockMatrix, TH2Matrix, and THMatrix.

virtual real entry	(	const idx_t	i,
		const idx_t	j
	)		const

virtual

return index (i,j) of the matrix (real valued)

i and j are global indices, e.g. not w.r.t. local index set

Reimplemented in TDenseMatrix, TRkMatrix, TUniformMatrix, TFacMatrix, TSparseMatrix, TBlockMatrix, TFacInvMatrix, TH2Matrix, and THMatrix.

virtual size_t global_byte_size ( ) const

virtual

return size in bytes used by this distributed object, i.e. of all distributed sub matrices

void set_complex	(	const bool	b,
		const bool	force = `false`
	)

inline

set internal representation to either real or complex valued; if force is true, the change is performed independent on current state

virtual void sum	(	const TProcSet &	p,
		const uint	pid,
		const uint	nparts,
		TByteStream *	bs,
		const TTruncAcc &	acc
	)

virtual

sum up nparts parallel copies of matrix

if bs != NULL it will be used
